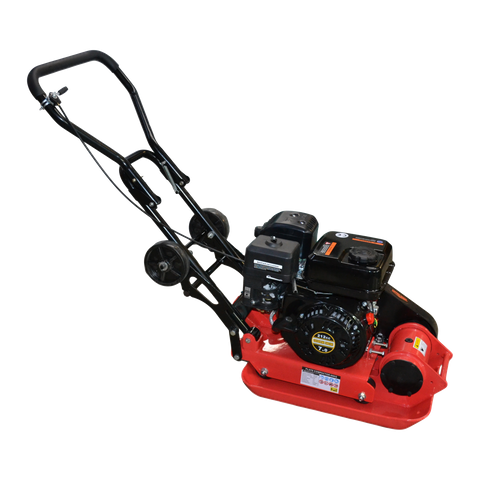

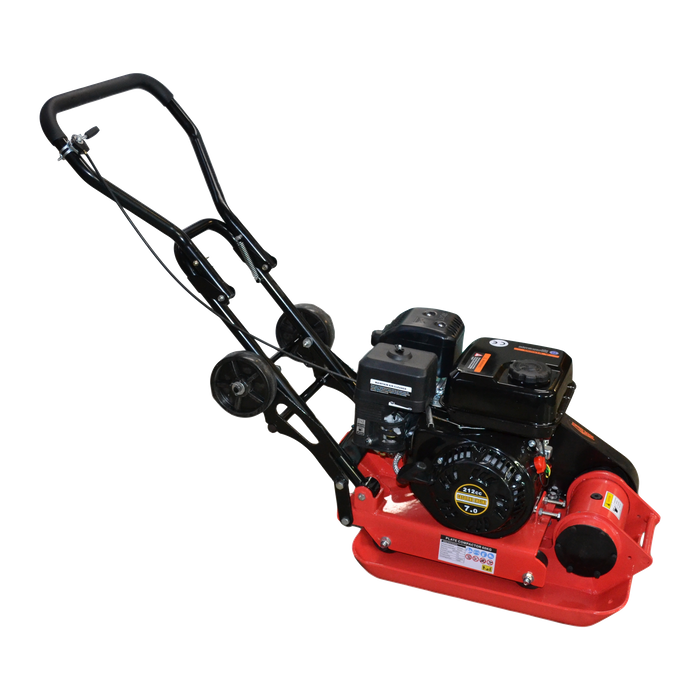

ToolShed Plate Compactor 60kg

$799.00 Inc GST
$659.00 Inc GST
or make 4 payments of $164.75 Inc GST with Afterpay More info
or 6 weekly, interest-free payments of $109.83 Laybuy What's this?
Sale Ends 30/06/21


ToolShed Plate Compactor 60Kg

A lot of our customer's have asked - "Please can you find us a reliable easy to use compactor that doesn't cost the earth !"

After looking at many factories we settled on this one because the build quality and finish is amazing. It also performed exceptionally well. Due to the fact we import direct from the factory we can offer this really nice machine at a very affordable price.

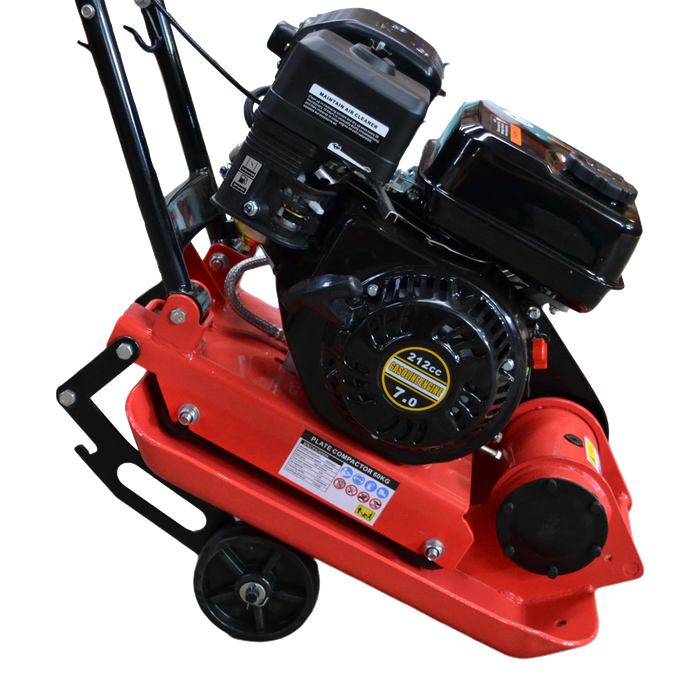

It is powered by a very reliable 7hp easy to start 4 stroke petrol engine that drives the exciter through a pulley, a clutch on the motor engauges so when you drop the engine speed it dies back to an idle, the clutch disengages the exciter so the machine wont move.

Increase the speed of the engine and the clutch will engage enabling the machine to move forward at a speed of 25m per minute.

The plate on this machine measures 370mm wide and is 500mm in length, the exciter runs at 5,500 vibrations per minute offering a output force of 11,000N which makes this machine ideal for landscapers, builders, home handy people etc.

Handles are easily folded down for transport and are fitted with rubber shock absorbers for comfortable operation over longer periods.

An annoying issue with plate compactors in general is due to the size and weight is moving it to the work area can be a real problem. This factory has overcome this problem with a unique system where the wheels can fold under the machine. This simple action means you to push or pull it around., similar to a hand barrow.

We also have available as an optional extra, a rubber base mat which is ideal for compacting cobbles so the steel base doesn't crack them. This rubber mat is 5mm thick. Order code is TSPC3.

Another optional extra is a water tank. Using water to wet substructure helps with compaction, It also helps avoid hot mix sticking to the plate when it is being compacted. This tank is easily attached to the front of the compactor by three screws which are provided with the machine.
Order code is TSPC5

Its all the small features added to this machine that just make it a better more user friendly machine.


Weight 60Kg
Engine 7HP 4 stroke petrol
Travel speed 25m per minute
Exciter speed 5,500 VPM
Centrifugal force 11,000N
Plate size 500 x 370mm
