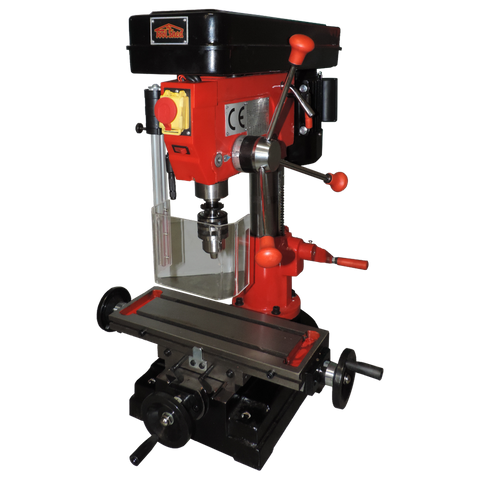

ToolShed 16mm Bench Mount Mill/Drill

Code:
TSDP16
NOW:
$1,099.00 Inc GST
or 6 weekly, interest-free payments of $183.17 Laybuy What's this?
Unavailable for Online Purchase

Description

ToolShed 16mm Bench Mounted Mill/Drill

The ToolShed 16mm Bench Mounted Mill/Drill is a must have for any workshop as it gives you the versatility of being not only a drill press but also a mill. Constructed mainly of cast iron, it also has a finely machined column which features a rack and pinion for raising and lowering the head. Easily attach a drill vice with the preformed slots in the table or bolt it down to your work bench with the predrilled holes in the table. An in-built light ensures you can always see your workpiece while the aluminium cased motor helps increase the machine's lifespan. The adjustable cast milling table will give you a cross feed adjustment of 230mm and a forward and back adjustment of 120mm.

Features
- Versatility of being both a drill press and a mill
- Mainly cast-iron construction with a finely machined column that features a rack and pinion for raising and lowering the head.
- Easily attach a drill vice or mount it to your workbench with preformed slots and holes
- Built-in light to ensure you can always see your workpiece*
- Aluminium cased motor to help increase the machine's lifespan
- Adjustable cast milling table

Specifications
Motor Size - 550w single phase
Chuck Size - 16mm keyed
Drilling Speeds - 12 speeds from 320 - 3300rpm
Spindle Travel - 80mm
Depth of Throat - 160mm
Taper Size - MT2
Table Travel - Left/Right 230mm - Forward/Back 120mm
Max. Drilling Height - 220mm
Voltage - 230v
Dimensions - 800mm H x 700mm W x 700mm D (over handles)

* Light bulb is not included as they can break during shipping, they are a standard E27 bulb.
