XHD Lithium Cordless Rail Saw Brushless 18V 5Ah with 1.4m Rail

XHD Lithium Cordless Rail Saw Brushless 18V 5Ah with 1.4m Rail

Name: XHD Lithium Cordless Rail Saw Brushless 18V 5Ah with 1.4m Rail
Brand: XHD Lithium
SKU: XHDRS2X5RAIL
Price: 799.00 NZD
Availability: OutOfStock

Code:

XHDRS2X5RAIL

5 Stars 4 Stars 3 Stars 2 Stars 1 Star

(0 reviews)

Check availability in store

NOW:

$799.00 Inc GST

Description

XHD Lithium Cordless Rail Saw Brushless 18V

The XHD Brushless Cordless Rail Saw is the ultimate cutting solution for clean, controlled results across a variety of materials. Fitted with a powerful brushless motor and a variable speed range of 2200-4200 RPM, it delivers smooth, consistent cuts while adapting to the task at hand. Compatible with standard 165mm x 20mm blades, this rail saw offers a cutting depth of up to 58mm at 90° and 42mm at 45° (without track), with a bevel adjustment range from -1° to 47° for versatile, angled cuts.

Packed with precision features, including a spindle lock, plunge lock button, depth and bevel gauges, angle indicator, and a front parallel guide clamp and slot, it's engineered for both ease of use and cutting accuracy. The integrated riving knife helps prevent kickback, while the anti-kickback mechanism and splinter guards provide added safety and cleaner finishes. Compact and lightweight at just 2.1kg, this cordless saw is ideal for on-site and workshop use alike, offering reliable, high-performance cutting wherever the job takes you.

Features
– Fits common blade size Ø 165mm x 20mm for versatile use.
– A bevel adjustment range from -1° to 47° gives precise bevel cuts.
– Equipped with a spindle lock, plunge lock button, depth gauge, bevel gauge, angle indicator, and front parallel guide clamp and slot, plus many other features designed to enhance precision and safety.
– Includes a variable speed dial to suit different materials and tasks.
– Offers anti-kickback features and splinter guards for safer operation.
– Fits many tracks on the market including Milwaukee, Makita, and ToolShed.

Specifications
No Load Speed – 2200-4200 RPM
Blade Diameter – 165mm x 20mm Ø
Riving Knife Thickness – 1.5mm (±0.1)
Maximum Cutting Depth at 90° – With Track: 54mm | Without Track: 58mm
Maximum Cutting Depth at 45° – With Track: 38mm | Without Track: 42mm
Bevel Adjustment – -1° - 47°
Product Dimensions (LxWxH) – 488 x 287 x 206mm (Incl. Battery)
Net Weight – 2.1 kg

ToolShed 1400mm Plunge Cut Guide Rail TSPCRS1: Constructed of aluminum this rail is 1400mm long which allows easy cross cutting of 1200mm sheets. With the use of a TSPCRS2 rail connector you and can easily join to another rail to make a 2.8 m rail which makes it ideal for cutting the length of 2400mm sheets. These rails have an "anti slip" material on the under side to help prevent them sliding while in use.

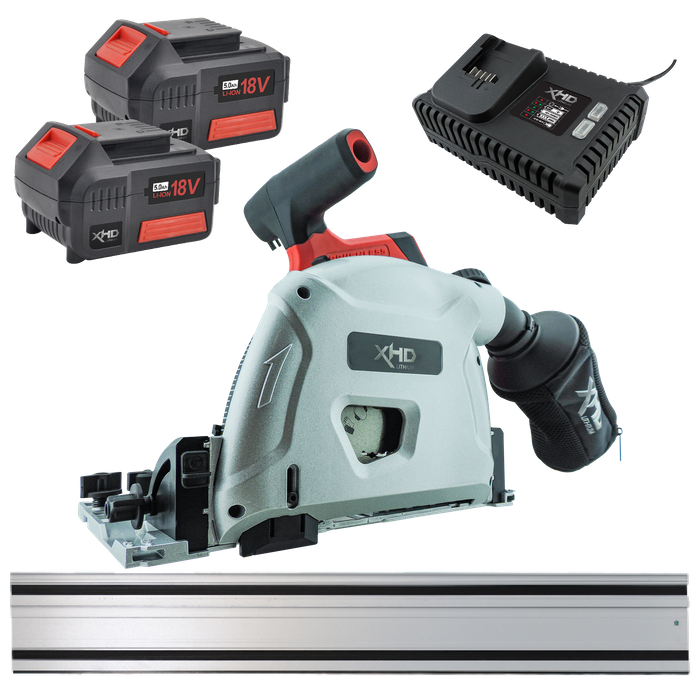

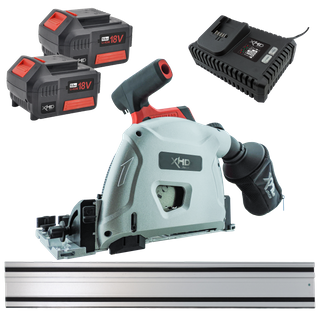

This kit includes:
1x TSC38 XHD Lithium Cordless Cordless Rail Saw Brushless 18V
2x TSC1 XHD Lithium Cordless Battery 18V 5Ah
1x TSC2 XHD Lithium 18V Battery Charger
1x TSPCRS1 ToolShed Guide Rail 1.4m to Suit Plunge Cut Saw
