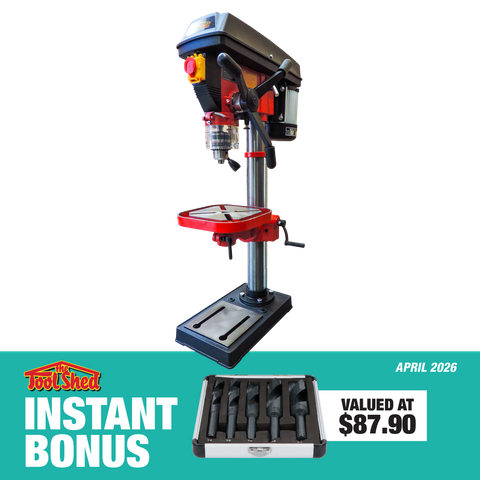

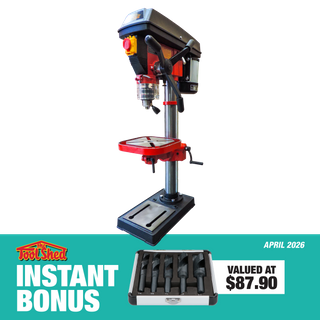

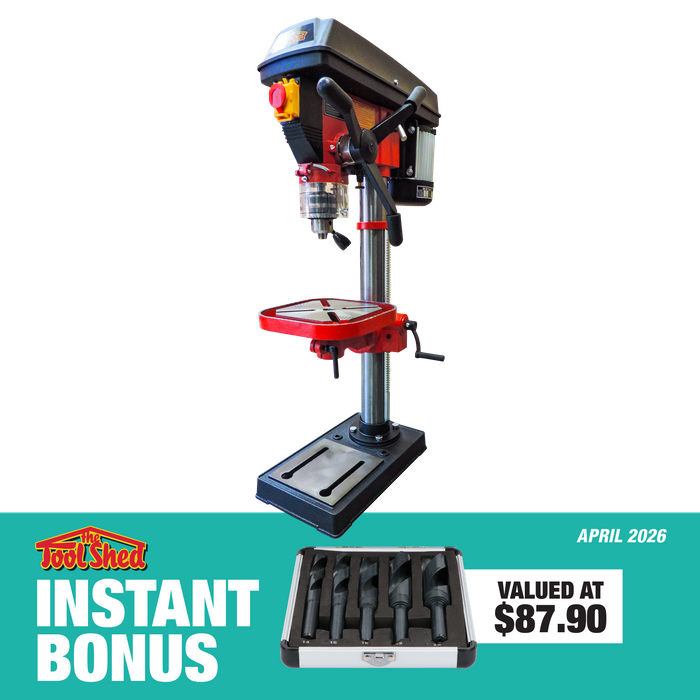

ToolShed Drill Press 20mm Bench Mount 1hp with HSS Drill Set 5pc

ToolShed Drill Press 20mm Bench Mount 1hp with HSS Drill Set 5pc

Name: ToolShed Drill Press 20mm Bench Mount 1hp with HSS Drill Set 5pc
Brand: ToolShed
SKU: TSDP26+DB005
Price: 649.00 NZD
Availability: InStock

Code:

TSDP26+DB005

5 Stars 4 Stars 3 Stars 2 Stars 1 Star

(0 reviews)

Check availability in store

NOW:

$649.00 Inc GST

Description

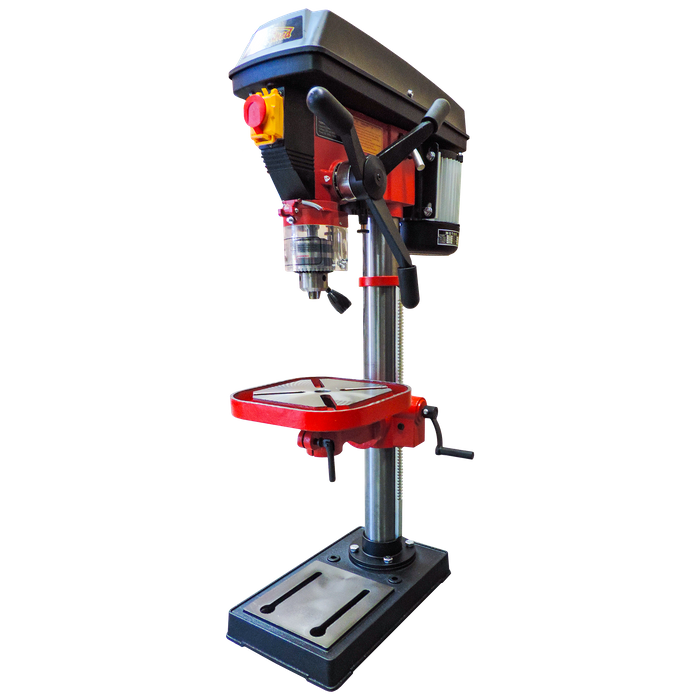

ToolShed Drill Press 20mm Bench Mount 1hp (TSDP26)

The ToolShed 20mm Bench Mount Drill Press is a robust and versatile tool designed to handle a wide variety of materials with precision and ease. Equipped with a fully adjustable worktable that can move both vertically and tilt left or right, this drill press allows for flexible work positioning, making it ideal for complex tasks. The built-in depth stop, featuring a scale on the pinion shaft, ensures accuracy, while the integrated LED work light enhances visibility for precision drilling. With five adjustable spindle speeds ranging from 180 to 3320 RPM, this machine offers the versatility needed to drill through wood, metals, plastics, and more.

Its ergonomic 3-handle feed wheel provides comfortable control, and safety is a top priority with an Emergency stop button and a protective chuck guard. The advanced laser line guidance system projects both X and Y axis lines onto your workpiece, ensuring accurate alignment. Speed adjustments are made quick and easy with a belt tension release knob and a handy reference chart. Built from heavy-duty steel and cast iron, this drill press delivers the durability and strength needed for demanding projects.

Specifications
Motor Size - 1hp | 745 Watts
Maximum Drilling Diameter - 20mm Ø
Chuck Capacity - 5-20mm
Spindle-Column Distance - 162.5mm
Spindle-Table Distance - 420mm
Spindle-Base Distance - 630mm
Spindle Travel - 80mm
Table Size - 250 x 250mm
Base Size - 420 x 250mm
Swing - 325mm
Spindle Taper - MT2

ToolShed HSS 1/2" Shank 5pc Drill Bit Set

This set comes with 5 assorted high speed steel drill bits which are all 150mm long. They are designed for drilling in a wide range of material including wood, aluminium, brass and steel. The set comes in a sturdy case to save the bits being damaged (and you will know where to find them) and includes one of each of the following
14, 16, 19, 22, and 25mm bits.

We just had a quick add up of locally made bits if they were to be purchased individually and they would cost you over $400 For the same range

A few Tips
Use a centre punch first for smaller sizes and a pilot hole for larger bits
When drilling in steel use an oil lubricant. Your drill bit will last longer and stay sharp
Run your drill/ drill press at the correct speed
Always wear appropriate PPE safety equipment, especially eye protection.
