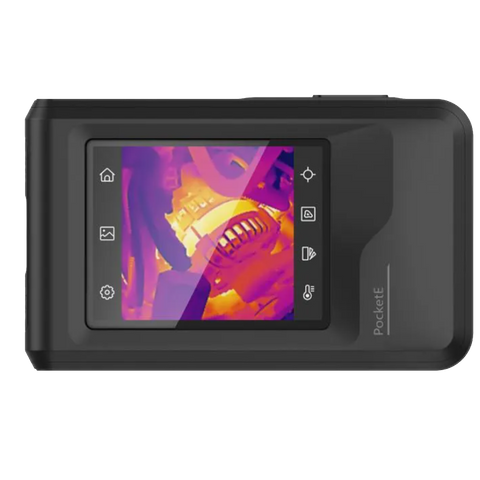

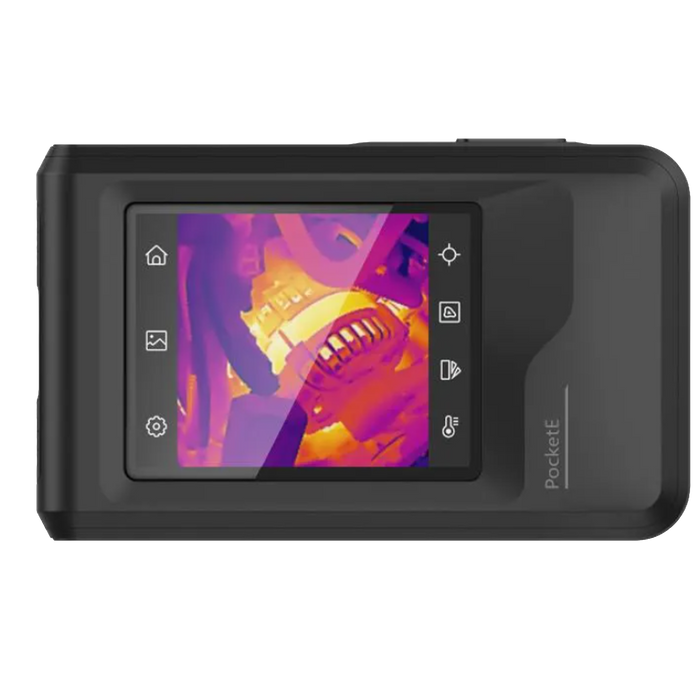

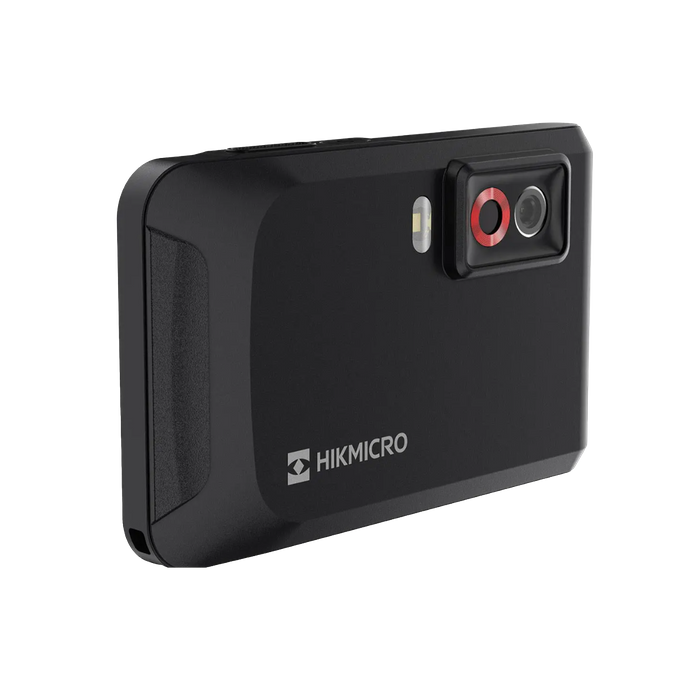

HIKMICRO Thermal Image Camera Pocket E

Code:
HM-TP40
(0 reviews)
Check availability in store
NOW:
$649.00 Inc GST

This is not a stocked item and product may need to be ordered in.
Please allow 7-14 days for pick up in store or delivery.

Description

HIKMICRO Thermal Image Camera Pocket E

HIKMICRO PocketE has a high-resolution HIKMICRO VOx detector, an 0.3 MP optical camera, and a 3.5” LCD touch screen. It helps you quickly and efficiently locate hidden problems and accurately measure abnormal temperatures. The wide temperature range of -20°C to 350°C is ideal for building inspection, HVAC, electrical, and mechanical equipment maintenance. The 25 Hz frame rate keeps up with fast inspection, and the Wi-Fi function allows the Pocket to share images in real-time. The Pocket Series is a powerful thermography tool in your pocket, so it is always there whenever you need it.

Features
- IR resolution: 96 × 96 (9,216 pixels), NETD:< 50 mK (@ 25°C, F# = 1.0)
- Support SuperIR Image enhancement technology on captured image and live view
- Accurately measure temperature from -20°C to 350°C (-4°F to 662°F)
- Support Multiple Scene modes, Some support SuperScene intelligent detection
- Accuracy: Max. (± 2°C/3.6°F, ± 2%)
- 25 Hz image frequency
- Thermal, Fusion, PIP, Visual, and Blending modes
- Manual, automatic, and 1-Tap level and span
- LED work light
- 0.3MP visual camera

Specifications
Infrared Image
IR Resolution 96 × 96 (9, 216 pixels)
SuperIR Yes, on captured images and live view
Distance to Spot Ratio (D:S) 15:1
NETD < 50 mK (@ 25°C, F#=1.0)
Image Frequency 25 Hz
Detector Pitch 12 micro-m
Spectral Range 7.5 to 14 micro-m
Focal Length 1.35 mm
F-number F1.0
Field of View (FOV) 50° × 50°
Spatial Resolution (IFOV) 8.89 mrad
Focus Mode Focus Free
Min. Focus Distance 0.1 m (0.33 ft)

Image Display
Display 320 × 240 Resolution, 3.5" LCD Touch Screen
Image Modes Thermal/Visual/Fusion/PIP/Blending
Color Palettes White Hot, Black Hot, Rainbow, Ironbow, Red Hot,Fusion, Blue Yellow
Visual Camera 640× 480 (0.3 MP)
Screen Brightness Manual

Measurement and Analysis
SuperScene Mode Custom, Water Leak, Insulation, Floor Heating, Electrical Faults, Solar Panel
Smart SuperScene Alarm Water Leak, Insulation, Floor Heating
Alarm More than, Less than
Alarm Linkage Flashing Alarm, Alarm Mode Palettes
"Temperature MeasurementMode" Measurements presets (center spot,max spot,min spot,off)
Object Temperature Range "Range -20°C to 150°C (-4°F to 302°F)Range 100°C to 350°C (212°F to 662°F)"
Accuracy "Max (±2°C/3.6°F, ±2%) at ambient temperature 25°C (77°F) and objecttemperature above 0°C (32°F)"
Level and Span Mode Auto/Manual/1-Tap Touch-screen

Data Storage and Communication
Storage Media "Built-in 4 GB flash memory (user available storage space is less than thenominal capacity)"
Image Storage Capacity Approx. 20,000 Images
Image File Format Radiometric JPEG
Video Storage Capacity Approx. 37 hours
Video File Format MP4 video
Annotations Text note: max. 255 characters
"Radiometric Infrared-VideoStreaming (Compressed)" Over UVC and Wi-Fi

General
Wi-Fi 802.11 b/g/n ( 2.4 GHz )
USB Interface USB Type-C
LED Light Yes
Battery Type Rechargeable Li-ion Battery
Battery Operating Time Approx. 4 hours
Battery Charging Time Approx. 3 hours fully charged
Protection Level IP54
Working Temperature Range -10°C to 50°C (14°F to 122°F)
Drop Test Height 2 m (6.56 ft)
Storage Temperature Range -20°C to 60°C (-4°F to 140°F)
Relative Humidity < 95% non-condensing
Weight Approx. 218 g (0.481 lb)
Dimension 138.45 × 85.2 × 23.6 mm (5.45 × 3.35 × 0.93 in)
Tripod Mounting UNC ¼”-20
Power Supply USB-C (5V/2A)
