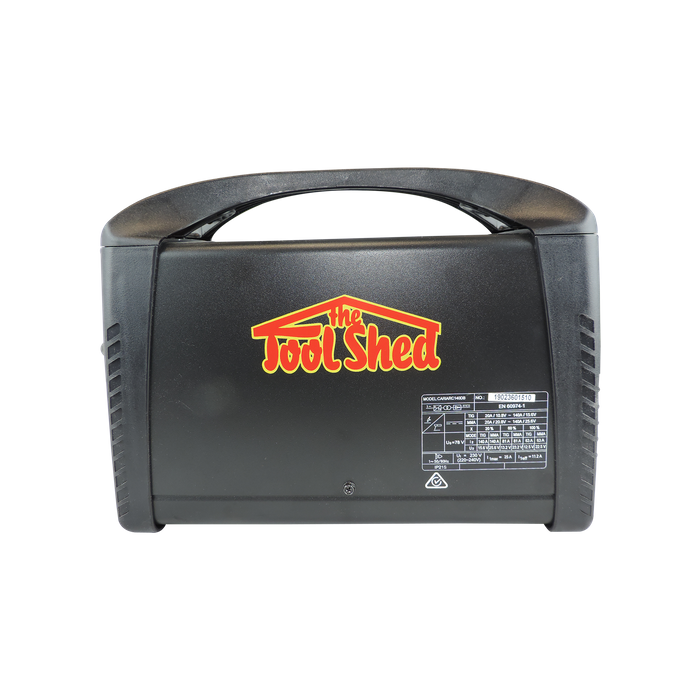

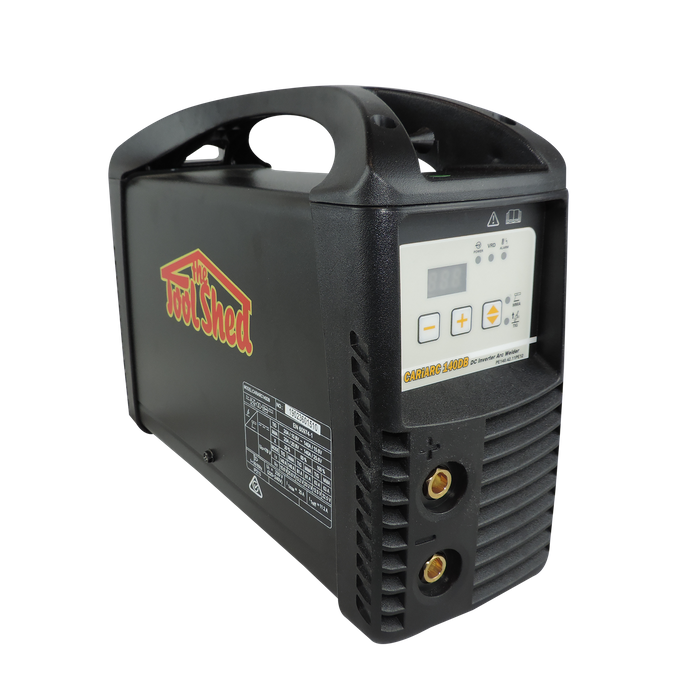

ToolShed 140 Amp DC Inverter ARC/TIG Welder

The ToolShed 140 Amp single phase DC Inverter Arc welder has been designed and manufactured for use within the industry and comes packed full of features.

Manufactured using the latest IGBT inverter technology offering a very small, lightweight yet powerful welder. This welder has a smooth stepless welding current from 20-140 amps and features hot start that increases the voltage initially to help strike the arc. The built-in fan keeps the welder cool during operation increasing its performance and has a thermal cut out to protect the machine so it won't overheat preventing damage. This welder can also be used as a basic TIG welder with the optional tig torch (TSWTT) sold separately.

Features:
- Latest IGBT Inverter technology that is extremely reliable and offers a smooth current output
- In built cooling fan to help the welder stay cool increasing its performance
- Stepless current adjust from 20-140 Amps with LCD current display
- Tig welding function is available with the additional TIG torch (sold separately)
- Over temperature cut out protects the machine from overheating causing internal damage

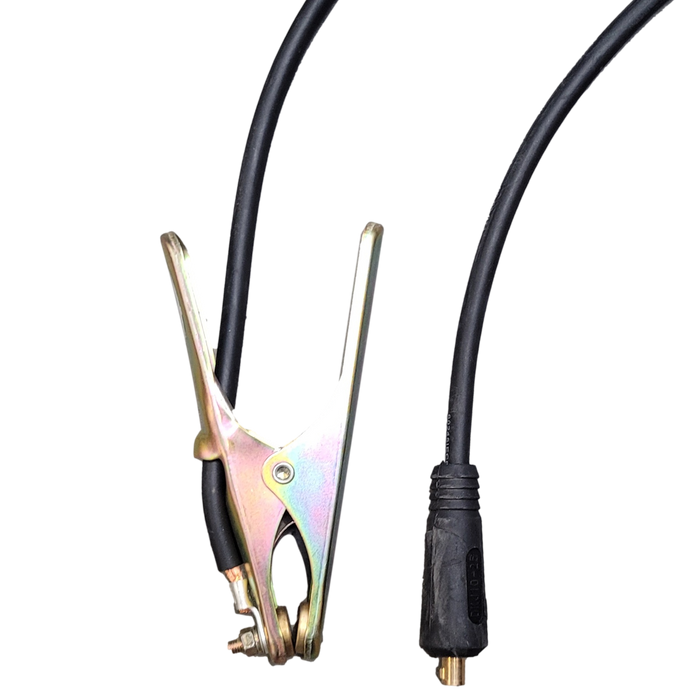

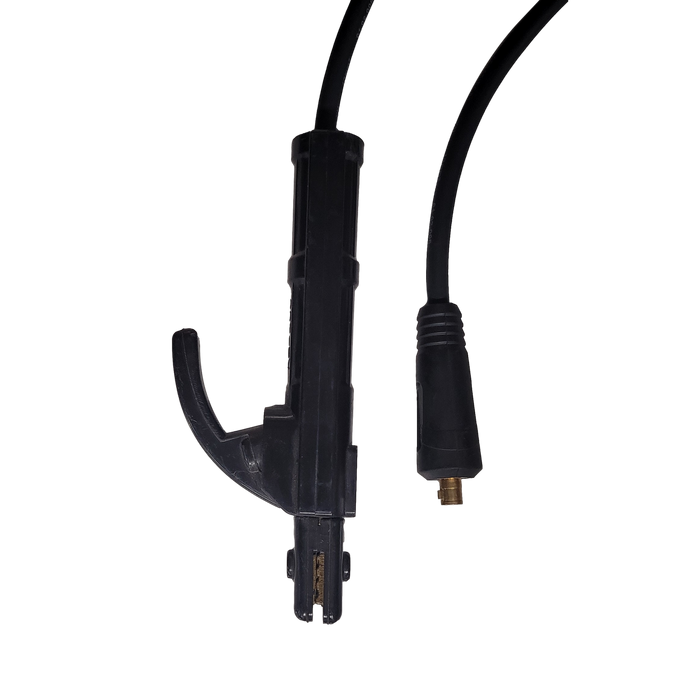

- Complete with 3m Arc and earth leads
- Small light weight design is easy to manoeuvre around the job site or workshop
- Hot start, increases the voltage initially so it is easier to strike the electrode
- Will operate a 1.6 - 3.2mm welding electrode

Specifications:
Input voltage - 230v 50Hz
Input effective current (1eff) - 11.2A
Output current range - 20- 140 A DC
Duty Cycle - 140A @ 20%, 81A @ 60% and 63A @ 100%
Weight - 4.7kg

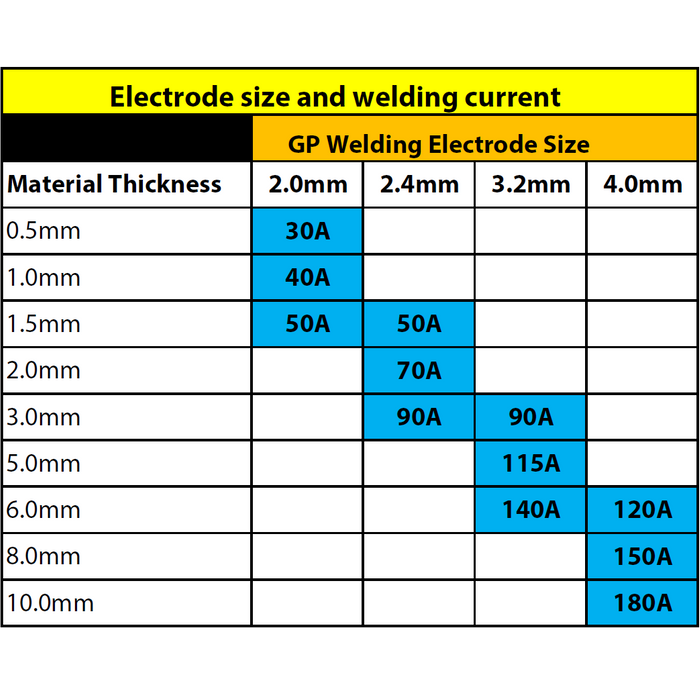

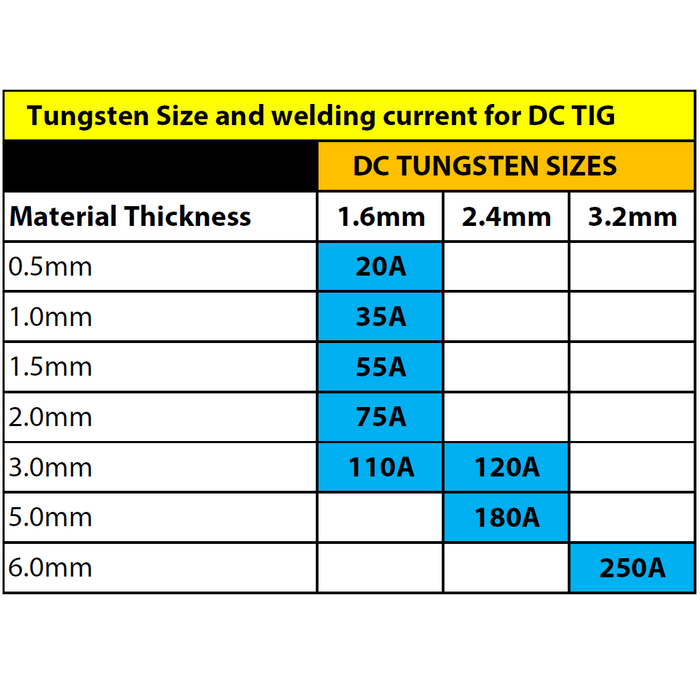

The welding current guide shown is designed to be used as a reference and other parameters may need to be adjusted.

This machine has been fitted with a 15 Amp plug to comply with NZ electrical regulations due to its high-power consumption. This machine will not plug into a standard 3 pin 10 Amp power outlet, please contact an electrician for advice before operation.
