ToolShed Drill Press 16mm Floor Mount 3/4hp

ToolShed Drill Press 16mm Floor Mount 3/4hp

Name: ToolShed Drill Press 16mm Floor Mount 3/4hp
Brand: ToolShed
SKU: TSDP24
Price: 429.00 NZD
Availability: InStock

Code:

TSDP24

5 Stars 4 Stars 3 Stars 2 Stars 1 Star

(0 reviews)

Check availability in store

WAS:

$499.00 Inc GST

NOW:

$429.00 Inc GST

Sale Ends 04/01/26

Description

ToolShed Drill Press 16mm Floor Mount 3/4hp

The ToolShed Drill Press 16mm Floor Mount 3/4hp is a powerful and feature-rich tool designed for demanding workshops. This floor-mounted drill press combines precision, versatility, and durability, making it an ideal choice for a wide range of drilling applications.

This Drill Press features a fully adjustable worktable that can be moved up and down and tilted left and right with a provided tilt scale, allowing for precise angled drilling. A built-in depth stop with a scale on the pinion shaft ensures accurate and consistent drilling depths. Enhanced visibility is achieved with the integrated LED work light, making detailed work easier.

With 16 spindle speeds ranging from 180 to 3320 RPM, this drill press can efficiently handle various materials, including wood, metals, and plastics. The ergonomic 3-handle feed wheel facilitates smooth operation, while safety features like the Emergency stop button and chuck guard provide added protection.
For precise alignment and accuracy, the drill press includes a laser line guidance system projecting X and Y axis lines onto your workpiece, ensuring precise alignment and drilling accuracy. Speed adjustments are made simple with a quick reference chart and a convenient belt tension release knob. Constructed from heavy-duty steel and cast iron, the ToolShed Drill Press is built to last and withstand rigorous use.

Features
- The worktable is fully adjustable up and down, and tiltable to the left and right with a tilt scale provided.
- Features a built-in depth stop with a scale on the pinion shaft.
- A built-in LED work light that makes precision work that much easier.
- It has 16 different spindle speeds ranging from 180-3320 RPM.
- Features an ergonomic 3-handle feed wheel making the job easier.
- Stand-out safety features such as an Emergency stop button and chuck guard.
- Able to drill into wood, metals, plastics, and a host of materials in between.

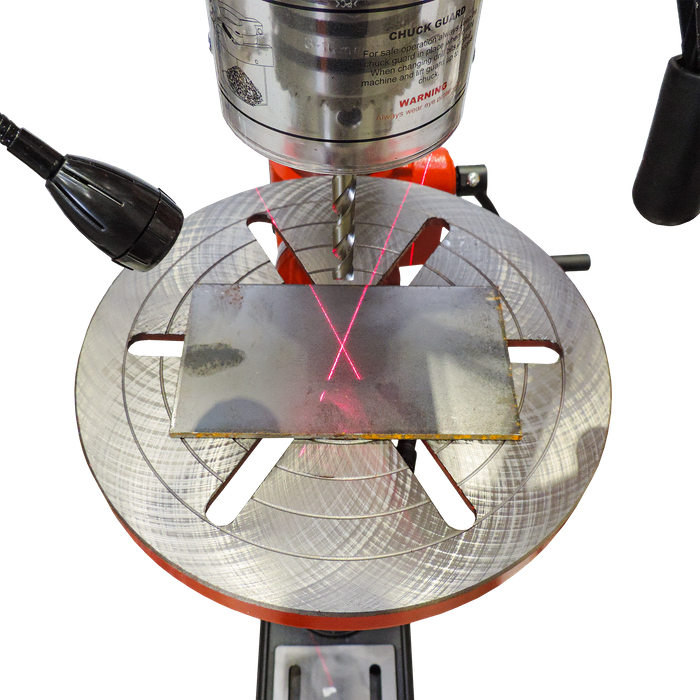

- Features laser line guidance system that projects X and Y axis lines onto your workpiece.
- Quick reference chart and a convenient belt tension release knob for rapid speed adjustments.
- Constructed of heavy-duty steel and cast iron.

Specifications
Motor Size - 3/4hp | 559 Watts
Maximum Drilling Diameter - 16mm Ø
Chuck Capacity - 3-16mm
Spindle-Column Distance - 162.5mm
Spindle-Table Distance - 725mm
Spindle-Base Distance - 1205mm
Spindle Travel - 80mm
Table Size - 290 x 290mm
Base Size - 460 x 270mm
Swing - 325mm
Spindle Taper - MT2
