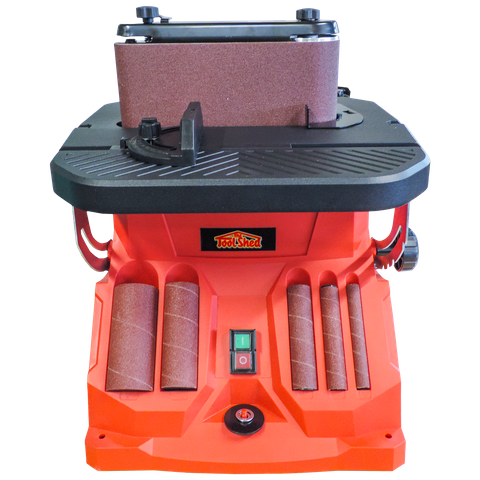

ToolShed Oscillating Spindle/Belt Sander

Code:
TSS04
(0 reviews)
Check availability in store
WAS:
$599.00 Inc GST
NOW:
$499.00 Inc GST
Sale Ends 04/01/26

Description

ToolShed Oscillating Spindle/Belt Sander

The ToolShed Oscillating Spindle/Belt Sander delivers professional-level results for sanding both intricate shapes and larger wooden workpieces. Combining dual rotation with vertical oscillation, it ensures faster material removal, a smoother finish, and minimises the risk of surface burns—ideal for curved contours, arcs, and irregular shapes.

Fitted with a 450W motor, this bench-mounted unit offers consistent performance and excellent control. The large 400 x 407mm tiltable work table includes preset angle stops at 0°, 15°, 22.5°, 30°, and 45° for quick adjustments, plus a sliding mitre gauge for added precision when edge sanding. A 38mm Ø dust extraction port helps keep your workspace cleaner and safer.

The sanding drum rotates at 2000 RPM and oscillates 58 times per minute with a 16mm travel, delivering an efficient and uniform finish across a range of shapes and sizes. It comes equipped with five sanding sleeves (80 grit), four rubber drums, and five table inserts—all stored onboard for convenience and organisation.

Features
– Tiltable work table has positive stops at 0, 15, 22.5, 30, and 45° for easy edge work.
– The table comes with a sliding Mitre gauge for added accuracy.
– Powerful 450W motor is ideal for sanding contours, arcs, curves and odd shapes.
– Integrated 38mm Ø dust extraction port to create a cleaner, safer work environment.
– Onboard storage includes five sanding sleeves, four drums and five table inserts-keeping all your extra parts in an organised place.
– The bobbin rotating at 2000 RPM and oscillating at 58 times per minute ensures exceptional finishing results.

Specifications
Bobbin Speed – 2000 RPM
Oscillations – 58 OPM
Oscillation Travel – 16mm
Sanding Table Dimensions (LxW) – 400 x 407mm
Dust Extraction Outlet Diameter – 38mm Ø
Input Power @ Rated Load – 450 Watts
Sanding Drum Diameters (80 Grit) – 13mm | 19mm | 26mm | 38mm | 51mm
Product Dimensions (LxWxH) – 440 x 470 x 500mm
Net Weight – 12.5 kg

Check product code TSS04SD for replacement sanding drums. And code TSSB100P80 for the replacement sanding belt.
