ToolShed ARC/TIG Welder 180 Amp Inverter

$399.00 Inc GST
$329.00 Inc GST
or 6 weekly, interest-free payments of $54.83 Inc GST Laybuy What's this?
Sale Ends 30/06/20

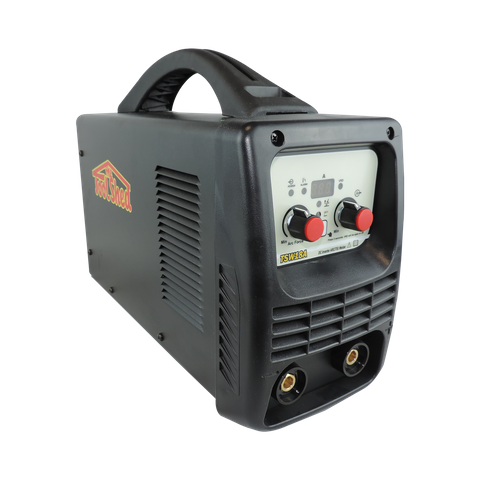

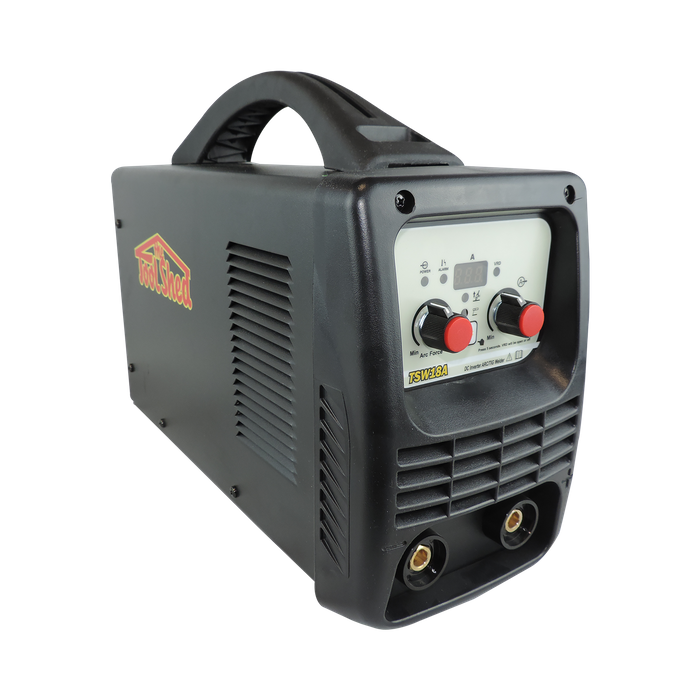

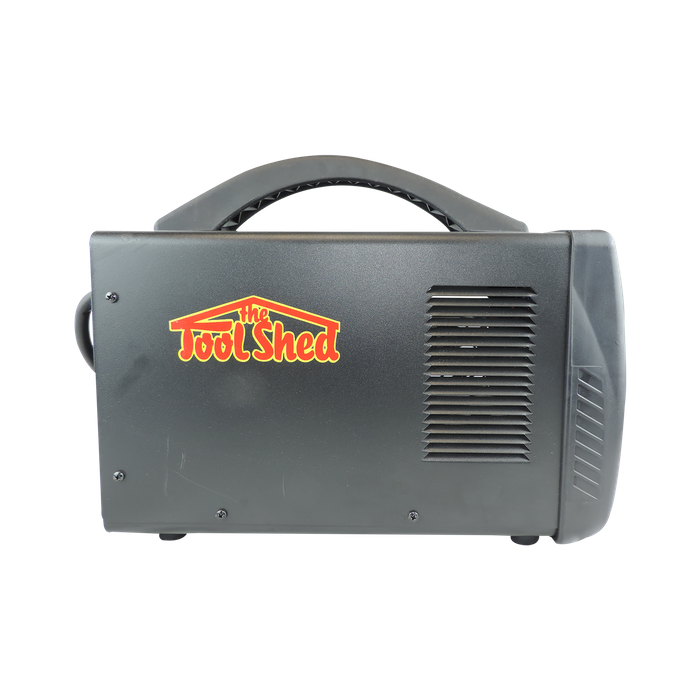

ToolShed Trade 180 Amp DC Inverter Arc/Tig Welder

The ToolShed Trade 180 Amp single phase DC Inverter Arc welder is perfectly suited for the home workshop, light engineering workshop or farm workshop.

The welder is one of the finest in it class. The built in electronics create a really smooth weld .It is very easy to strike and maintain the arc, the electronics also help prevent the welding rods from sticking to the work piece which can happen with transformer machines.

This machine offers the user a smooth step less current range from 20 -180Amps with digital display which makes it suitable for running 1.6mm-3.2mm electrodes.

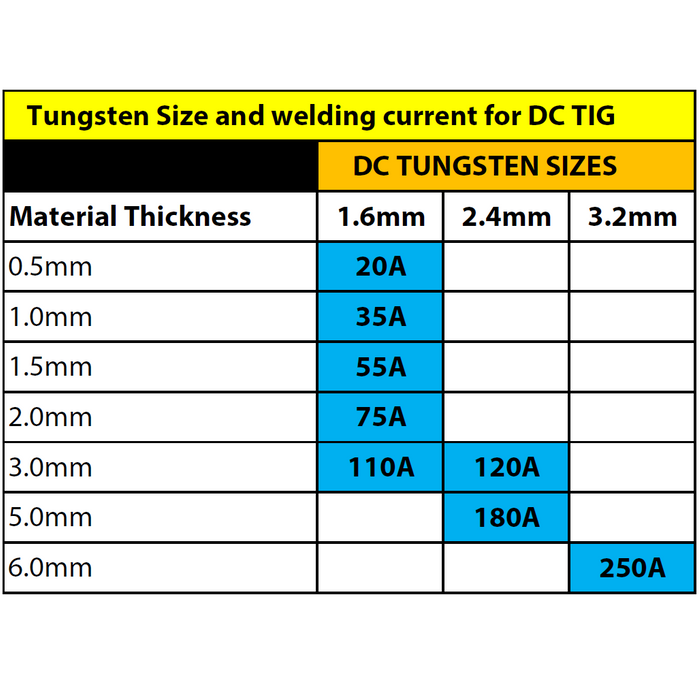

The machine also has a built in TIG welding function so with the addition of a TIG torch (optional extra) this welder can be used as a 180A DC lift arc TIG welder.

One of the other unique features this arc welder offers is VRD which stands for Voltage Reduction Device this means that the voltage present at the terminals is very low until you strike an arc this is a great feature as it significantly reduces the chances of an electric shock.

The rated duty cycle is 60% at 180 Amps . It is fan cooled and features an over temperature cut out to protect the machine from over loading.

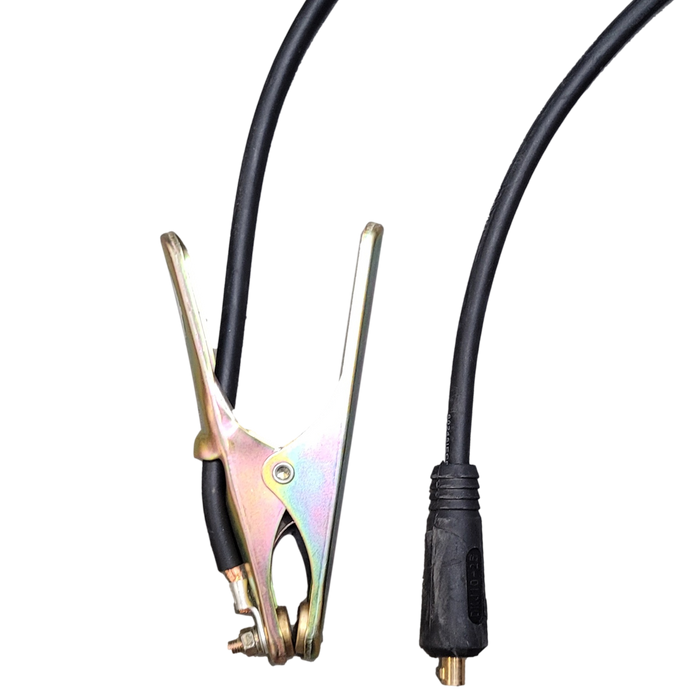

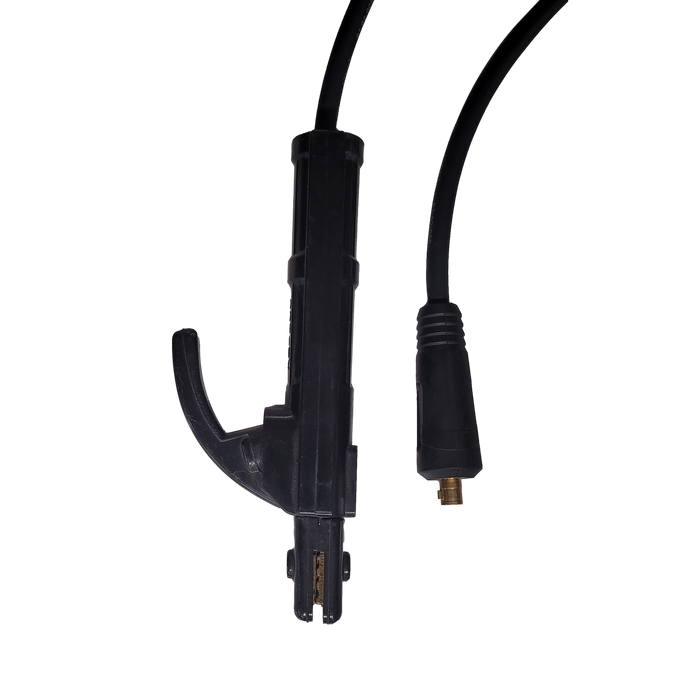

This welder comes complete with arc and earth leads using dinse connectors (A quick change bayonet style connector) which attach to the front of the machine, this also means longer leads can be added easily in the future if required. The whole machine is really compact and light weight.

All ToolShed Trade Inverter welding machines are manufactured with latest inverter technology, they are far more efficient, reliable, faster, lighter and have higher current handling capabilities than transformer and other inverter systems.

The ToolShed is very proud of the performance and reliability of it's welding machines. We are so confident with the quality that we offer a full 24 month manufacturers trade warranty on all welders and have full back up and service available to give you piece of mind.

DON'T BE FOOLED BY THE PRICE ! The reason we can bring you such a fantastic machine at such a good price is because we source the machine direct from the factory and basically take it out of the container and put it on the shelf. No middle man, no brand royalty, no agents fee's you get a quality machine with-out the cost.

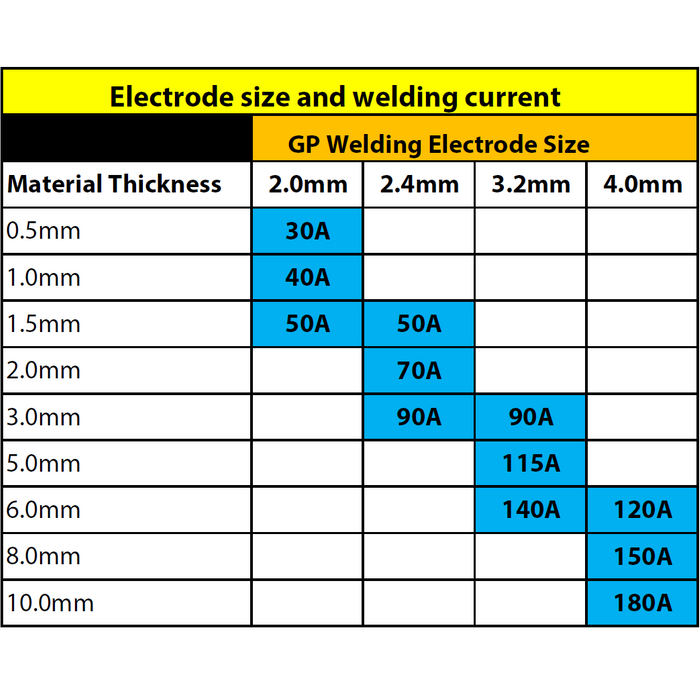

Below is a simple guide for what this machine can be expected to weld in mild steel.

Welding current range Electrode Diameter Material Thickness
60 to 90A - 2.5mm up to 5mm
90 to 150A - 3.2mm up to 8mm
150 to 180A - 4.0mm up to 12mm

Please note that this machine has been fitted with a 15 Amp plug to comply with NZ electrical regulations due to its high power consumption.
This machine will not plug into a standard 3 pin 10 Amp power outlet and modifications may need to be made before operation.
Contact an electrician or one of our stores for more information.

Voltage - 230
Range - 20- 180A
Duty Cycle - 60% @ 180A
Efficiency- 85%
Protection - IP21S
Weight 7.2- kg
